We needed to generate some files and share them with a third party. They preferred we put the files on our SharePoint since they already had access to it.

So we made a docker-compose that scheduled a CRON job to create the files in the shared folder.

The files were getting generated alright and other files were getting synced alright, but the generated files were not!?

In CloudSync Folder

Synology Configuration

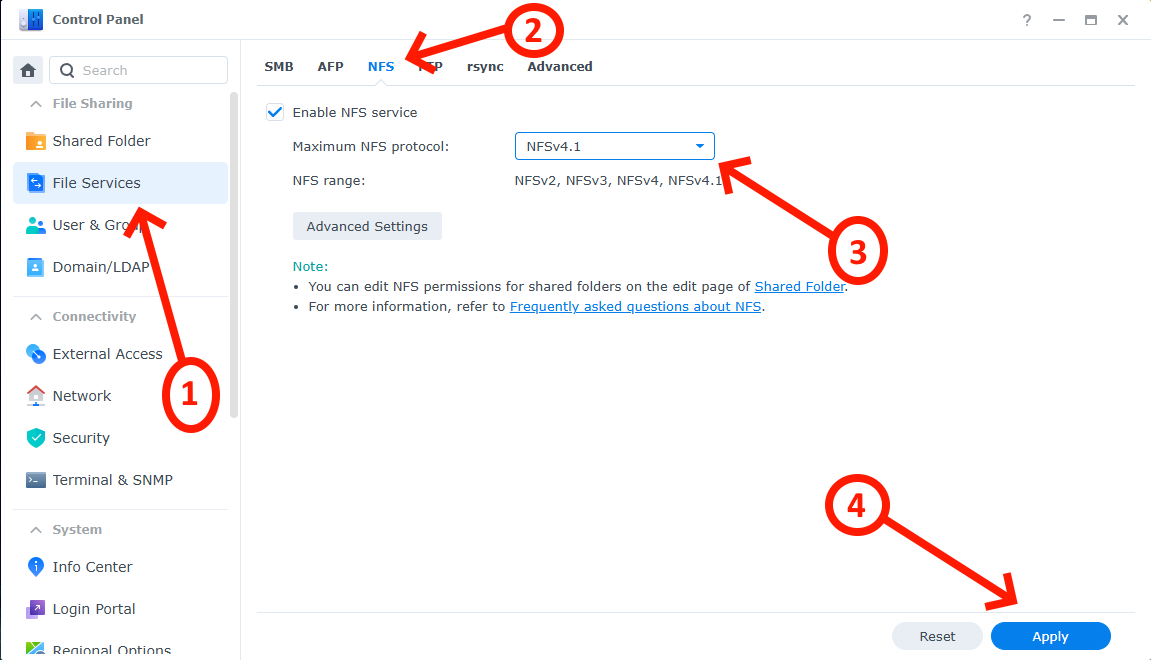

Enable NFS

Steps: Control Panel > File Services > NFS > Enable

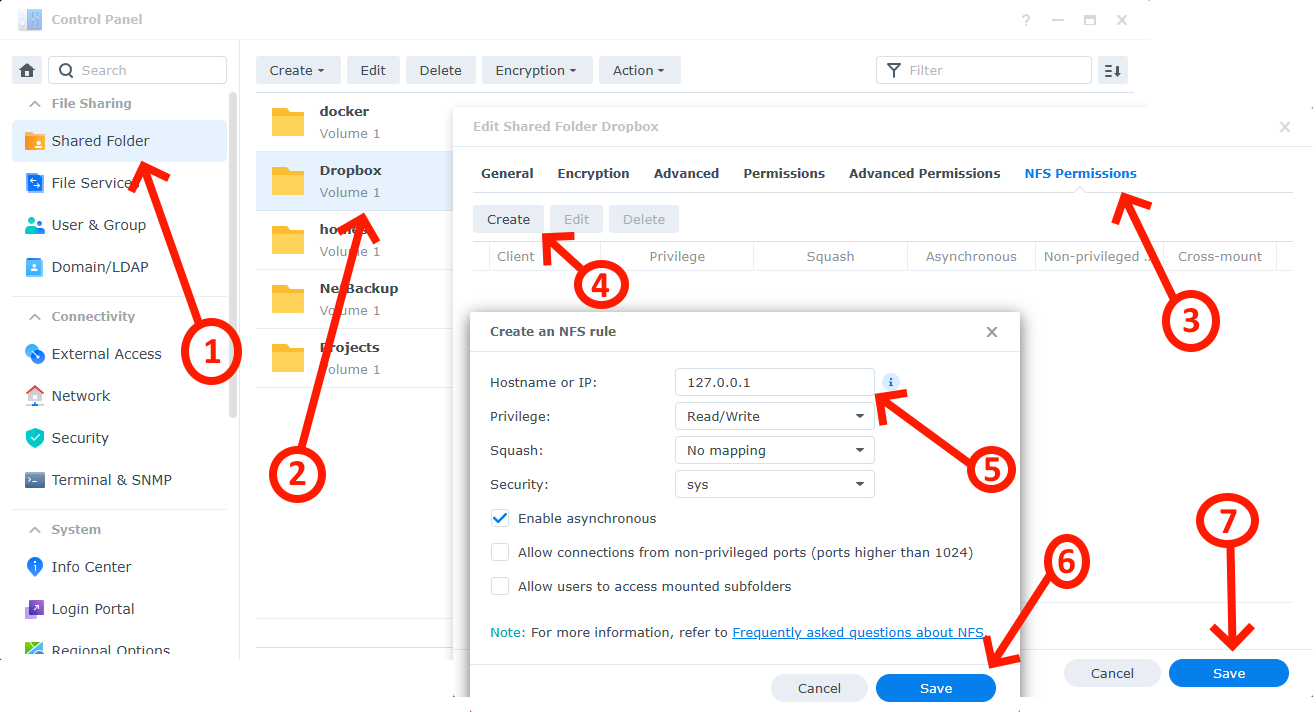

Enable NFS on Shared Drive

• Control Panel > Shared Folder > right Click “workspace” > Edit > NFS Permissions
  • Create > Hostname or IP: 127.0.0.1 > Save

The Code

compose.yaml

Requires an .env file with with: SYNC_DIR=/volume1/CloudSyncedFolder/shared-with-3rd-party

version: "3"

services:
  cron_job:
    # Sets up the CRON job
    build: .
    # Scheduled job write to /export
    volumes:
      - exportVolume:/export

volumes:
  # The required magic
  exportVolume:
    driver: local
    driver_opts:
      type: nfs
      o: nfsvers=4,addr=127.0.0.1,rw
      # The folder the job writes to
      # Shared with the 3rd party
      device: ":${SYNC_DIR}"

Other files

Minimal CRON job setup

• Dockerfile: Copies sh files to the container and runs start.sh
• start.sh: Calls crontab to run create-file.sh and starts the deamon
• create-file.sh: touch /export/export.csv

NFWhat?

NFS or Network File System, a distributed file system protocol which allows you to access files over a network as if they were on the local disk. It has been around since 1984 and is pretty much the standard on Linux systems.

Thanks to NFS we get proper inotify events and CloudSync picks up our files. Crisis averted!

Outside CloudSync Folder

It might not be possible to create the files directly into the folder that CloudSync is active on.

The easy solution would be to create a symbolic link to the CloudSync folder; but, of course, that doesn’t work.

ln -s /volume1/Projects/GeneratedFiles /volume1/Dropbox/GeneratedProjectFiles

Scheduled rsync Task

An easy solution here is creating a recurring task to run rsync.

• Synology DSM
• Control Panel > Services > Task Scheduler
• Create > Scheduled Task > User-defined script
  • General: Set a task name
  • Schedule: I kept the default of a daily sync
  • Task Settings > Run command

rsync -av --delete /volume1/Projects/GeneratedFiles /volume1/Dropbox

This will create a folder GeneratedFiles in /volume1/Dropbox.

rsync options:

• -a: Archive mode to preserve file attributes (permissions, timestamps etc)
• -v: Verbose output. You’ll have to select a folder for the output in Task Scheduler > Settings to actually see the output.
• --delete: If your Docker container also deletes files
• --chown=CloudSync:CloudSync: I didn’t have to change ownership for CloudSync to pick up the files

Of course you could also just add this to the docker-compose 😀
